PRODUCT ID: #LDPD-004

This product consists of a complete comprehensive AudioVisual (AV) design package for a typical exhibition hall event setup. These designs were prepared officially for an actual project that our company worked on in 2017 for a large-scale corporate event that was held at the iconic KLCC Convention centre in Kuala Lumpur, Malaysia. Therefore, all design details, elements and equipment contained in this package are real-world application based and should suit most common event and exhibition setup applications.

These designs are suitable for:
1. Design engineers and/or contractors seeking technical base plans for reference to similar project scope of works
2. CAD drafters seeking template-ready designs for similar projects to enable drawing efficiency and saving time
3. Anybody that is seeking a reference guide to setup an AV & Lighting system for an exhibition or event space.

This product is available for digital download in DWG format and comes ready with the following information:
1. Master Floor Plan with Lighting & AV equipment layout
2. Master elevation layouts of Lighting & AV equipment

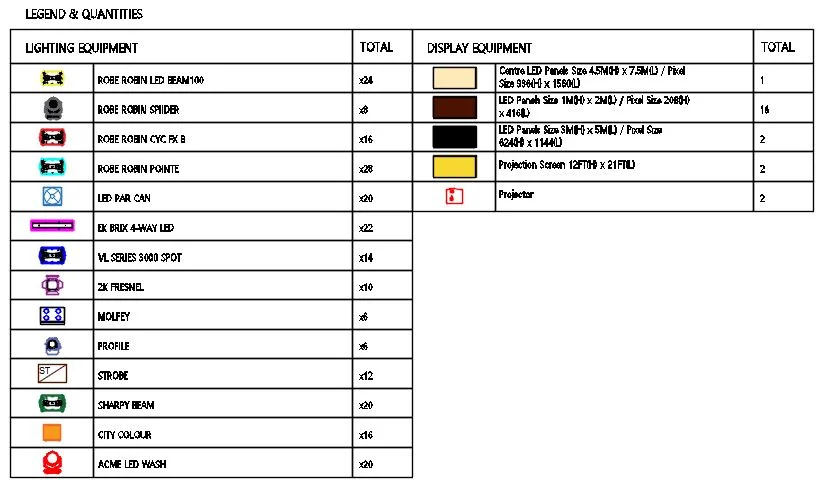

3. Complete set of ‘real-world’ equipment manufacturer blocks of Lighting blocks. Includes notable manufacturers and product types such as the Robe Robin series, LED Par Cans, EK Brix 4-Way LED’s, Fresnels, Molfey, Strobe Lights, Sharpy Beams, ACME LED Washes and many more.
4. Complete ready with Title Block setup and presentation for all plan and elevation views ready for user submission to external parties and clients.

Thank you for your interest in this product! Feel free to browse our online store for other available design products and merchandise. Kindly contact us via the form or contact details on our website if you have any questions about this product.
